Features

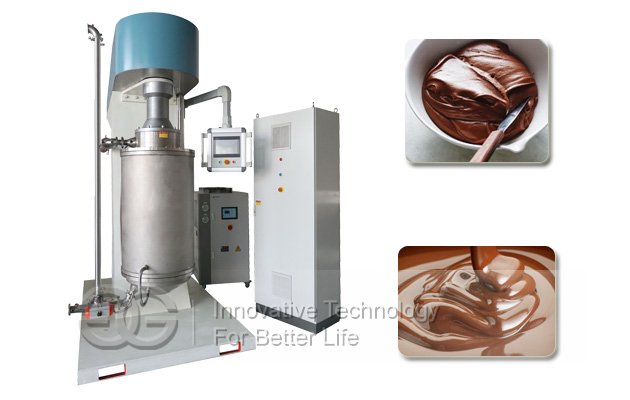

Chocolate Ball Mill Machine/Ball Miller/Ball Mill refining is the ideal machine for ensuring efficient and uniform refinement of chocolate and similar masses with relatively low fat contents. Though this ball mill machine can be used as a stand-alone refining mill (Set after mixing machine), its features are best put to use when it is combined with our Chocolate Conche Machine, whether installed separately or as part of a comprehensive, compact unicom system.
Chocolate Ball Milling Machine
The chocolate paste is refined through the combined spinning of the two main shafts fitted with discs and the alloy beads located in the milling tank. The design and distribution of these components forces the mass (pumped upwards) to remain in the mill tank as long as needed, thereby allowing for the required reduction in fine particle size (20-25μm) while ensuring the homogenous distribution thereof.



Message

Thank you for visiting our site! Please feel free to submit this form with any questions or comments. We will answer your message within 24 hours.

*
*
Number Change

Technical Data

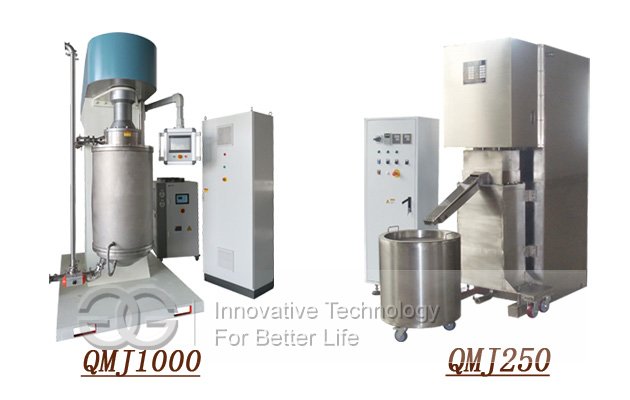

    Model QMJ250 QMJ1000
    Main Motor Power (kW) 15 55
    Biaxial Revolution Speed
    (rpm/Variable Frequency Control)    		 250-500 750-1000
    Production Capacity (kg/h) 200-250 750-1000
    Fineness (um) 25-20 25.20
    Ball Material  Ball Bearing Steel Ball Bearing Steel
    Balls Weight(kg) 180 1400
    Whole Machine Weight(kg) 2000 5000
    Outside Dimension (mm) 1100*1250*2150 2400*1500*2600
